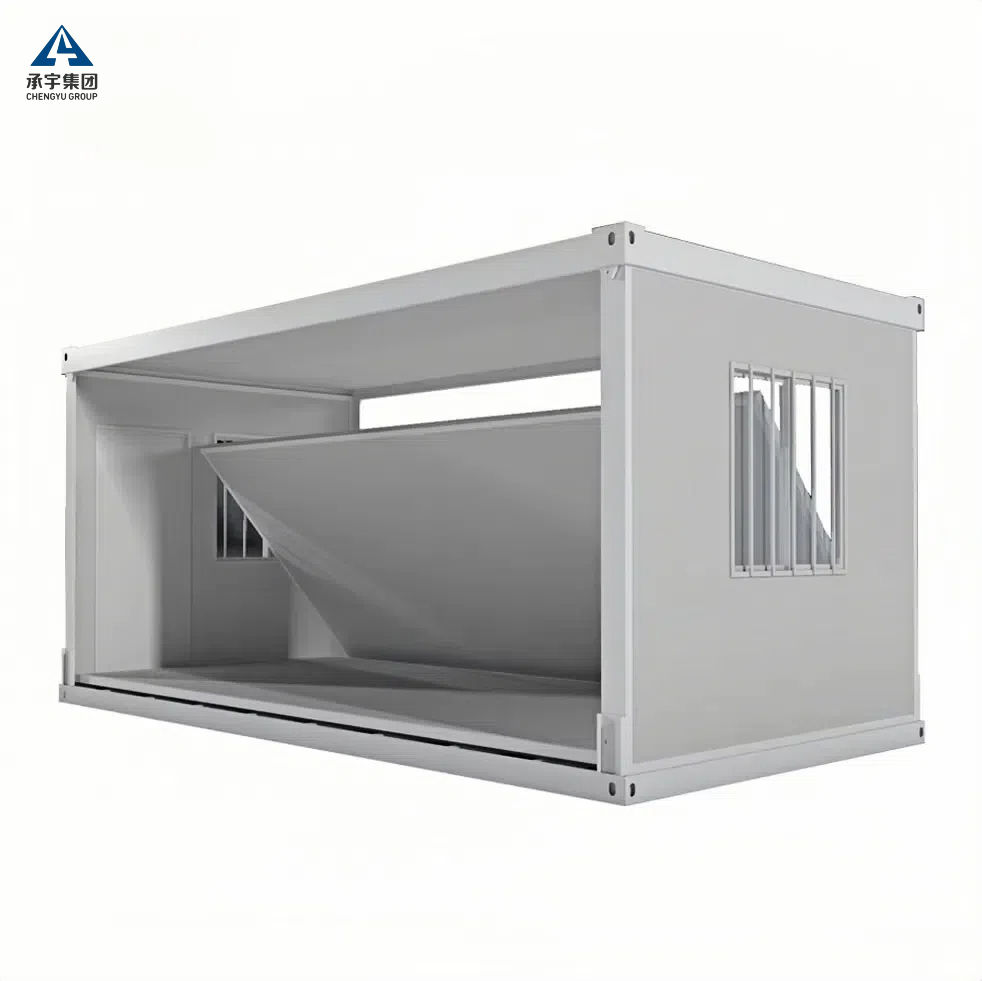

Folding Container House-Z
This is a standard-sized container constructed from robust materials with a foldable design. When empty, it can be folded flat, significantly saving space and reducing costs during storage and transportation, making it an ideal choice for enhancing logistics efficiency.
Contact us
Product Introduction
Standard Configuration
Scene Layout
Applications
Product introduction
· Folding Prefabricated Container House,We provide very detailed installation instruction drawings and videos for each project.
· For large projects, we will have both installation workers and supervisors on site.
· The on-site service fee should be negotiated with the customer.
Standard Configuration
Project
Folding House Packing List.
Product
dimensions
5830L × 2500W × 2470H (mm)
Folded Height
H=440mm
Loading capacity
1*40HQ=10 units
Roof Form
Flat Roof
Number Of
Layers
≤2 layers
Column
Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,
Material=Q235B.
Roof Main Beam
Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,
Material=Q235B.
Roof Secondary
Beam
Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,
6 Pices,Material=Q235B.
Ground Main
Beam
Height=50*140mm,Roller beam,Material Thickness=2.3mm,
Material=Q235B.
Ground
Secondary Beam
Galvanized Cold Rolled Section Steel C Type,
Material Thickness=1.5mm,9 Pices,Material=Q235B.
Bolt
8.8 Class High-Strength Bolts, 6.
Substrate
18mm Fireproof Glass Magnesium Board.
Paint
Electrostatic spraying plastic powder baking varnish ≥80m.
Roof Panel
EPS Color Steel Sandwich
Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water.
Insulation
Cotton
50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection.
Color steel Plate
Panel Coler Streel Plate Thickness=0.4mm.
Specification
Width*Height = 840mm*1900mm
Material
Steel Door, Concealed Buckle Lock.
Specification
950mm*1100mm
Fram Material
Plastic Steel
Glass
Single Glass
Voltage
220V,50Hz
Wire
Concealed Line, Total Home Power Line 3*4 Square, Air-conditioning
line 3*4 square, Socket Line 3*2.5 Square, Lighting Switch Line.
2*1.5 Square
Breaker
High Breaking Miniature Circuit Breaker.
Illumination
1 set of 1200*300 ultra-thin LED lights, power 36W.
Socket
4 Five-hole sockets 10A (or USB socket), 1 Three-hole air conditioner
socket 16A, 1 Single switch 10A.
Folding
hardware
Special Parts, No Hinges
Standardized construction is adopted, and equipment and accessories
conforming to national standards are used
Scene Layout
Applications
Cambodia Warehouse
Factory Dormitory
Government Dormitory
Dormitory
